Male and Female Quick Release Coupling

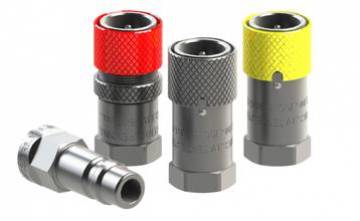

ER-06 (Y25200ABVW Series)

Applications

Main application: brake systems for road equipment, plants and agricultural implements
Main fluid of passage: compressed air
Connection (sphere): retract the sleeve, after aligning it with the sphere
Connection (screw): spin the screw until the sleeve retracts
Lock (sphere): spin the sleeve, to misalign the spheres and the groove
Lock (screw): spin the screw until it touches the sleeve, avoiding retraction
Disconnection (sphere): retract the sleeve, after aligning it with the sphere
Disconnection (screw): spin the screw to retract the sleeve
Connection under pressure: depressurized or standard line pressure
Disconnection under pressure: depressurized or standard line pressure
Interchageability: according to ISO 6150: 1988 (E) B Series
Material: carbon steel
Surface treatment: zinc plating Cr(III)
Oilproof seals: nitrile rubber (NBR)
Work temperature: from -13⁰F to +212^₀F
Others seals, springs and threads on request
