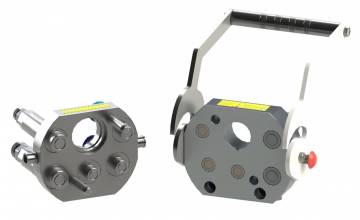

Multi-Coupling 5 Lines for Red Plataform (B280800A Series)

Description: mutual connection of 5 hydraulic lines with an electric port of up to 31 pins. Available sizes: 3L: 9,5 (3/8”) & 2L: 14,3 (9/16”)
Main fluid of passage: hydraulic oil
Connection: pressing the red button to allow the
movement of the handle, followed by the alignment of
the guide pins of the mobile half in the guide holes of
the fixed manifold, allowing the joining of both parts
Disconnection: press the red button to allow the
handler retraction
Connection under pressure: allowed
Interchangeability: interchangeable according to market driven standards (AGC)
Material: carbon steel
Surface treatment: zinc plating Cr(III)
Seals: NBR (Nitrile Rubber), Polyurethane and backup ring in PTFE
Working temperature: -25°C (-13°F) to 100°C ( 212°F)
Others seals and threads on request
