Applications

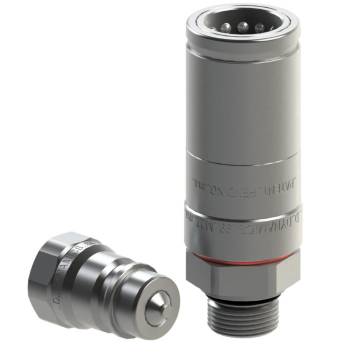

Male and Female Quick Release Coupling

ISO A Standard Mounted on the Hydraulic Control Valve (B99200AC Series)

Applications

Main application: threaded on the directional control valve (open centers) or manifold to connect between the tractor and agricultural implement, according to agricultural ISO 7241-1 Standard
Main fluid of passage: hydraulic oil
Connection: pushing the male coupling
Disconnection: pulling the male coupling
Connection under pressure: only the male coupling pressurized
Disconnection under pressure: emergency only according to ISO 5675 Standard
Interchangeability: ISO 7241-1 A Series standard
Material: carbon steel
Surface treatment: zinc plating Cr(III)
Oilproof seals: nitrile rubber and backup ring in PTFE
Work temperature: from -13^°F to +212^°F
Others seals, springs and threads on request
