Applications

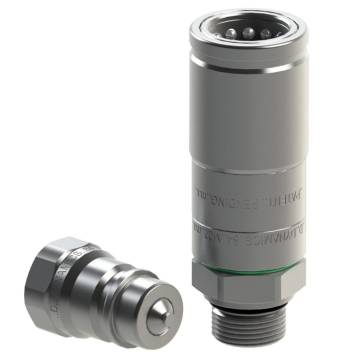

Male and Female Quick Release Coupling

ISO A Premium Mounted on the Hydraulic Control Valve (B99200Y Series)

Applications

Main application: threaded on the directional control valve (closed centers) or manifold to connect between the tractor and agricultural implement, according to agricultural ISO 5675 Standard.
Main fluid of passage: hydraulic oil
Connection: pushing the male coupling
Disconnection: pulling the male coupling
Connection under pressure: allowed on both sides (male and female)
Disconnection under pressure: emergency only according to ISO 5675 Standard
Interchangeability: ISO 7241-1 A Series standard
Material: carbon steel
Surface treatment: zinc plating Cr(III)
Oilproof seals: nitrile rubber and backup ring in PTFE
Work temperature: from -13^°F to +212^°F
Others seals, springs and threads on request
