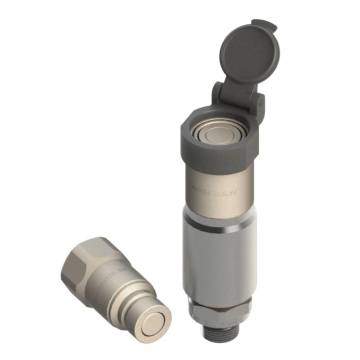

Flat Face Mounted on the Hydraulic Control Valve (B280000W Series)

Main application: threaded on the directional control valve or manifold to connect between the tractor and agricultural implement. Meets the ISO 16028 - Size 08. Offers no spillage upon disconnection
Main fluid of passage: hydraulic oil
Connection: pushing the male coupling
Disconnection: pulling the male coupling
Connection under pressure: allowed for the male part pressurized
Disconnection under pressure: emergency only according to ISO 5675 Standard
Interchangeability: ISO 16028 (Size 08)
Material: carbon steel
Surface treatment: zinc plating Cr(III)
Oilproof seals: nitrile rubber, polyurethane and backup ring in PTFE
Work temperature: from -13^°F to +212^°F
Others seals, springs and threads on request
Notes:
1 - The connection under pressure of the male coupling is allowed only in a product of the same series or B180900 series.
2 - The full function of this series is atached to the use of a male coupling that follows the ISO-16028 Standard, capable to conect under pressure.
